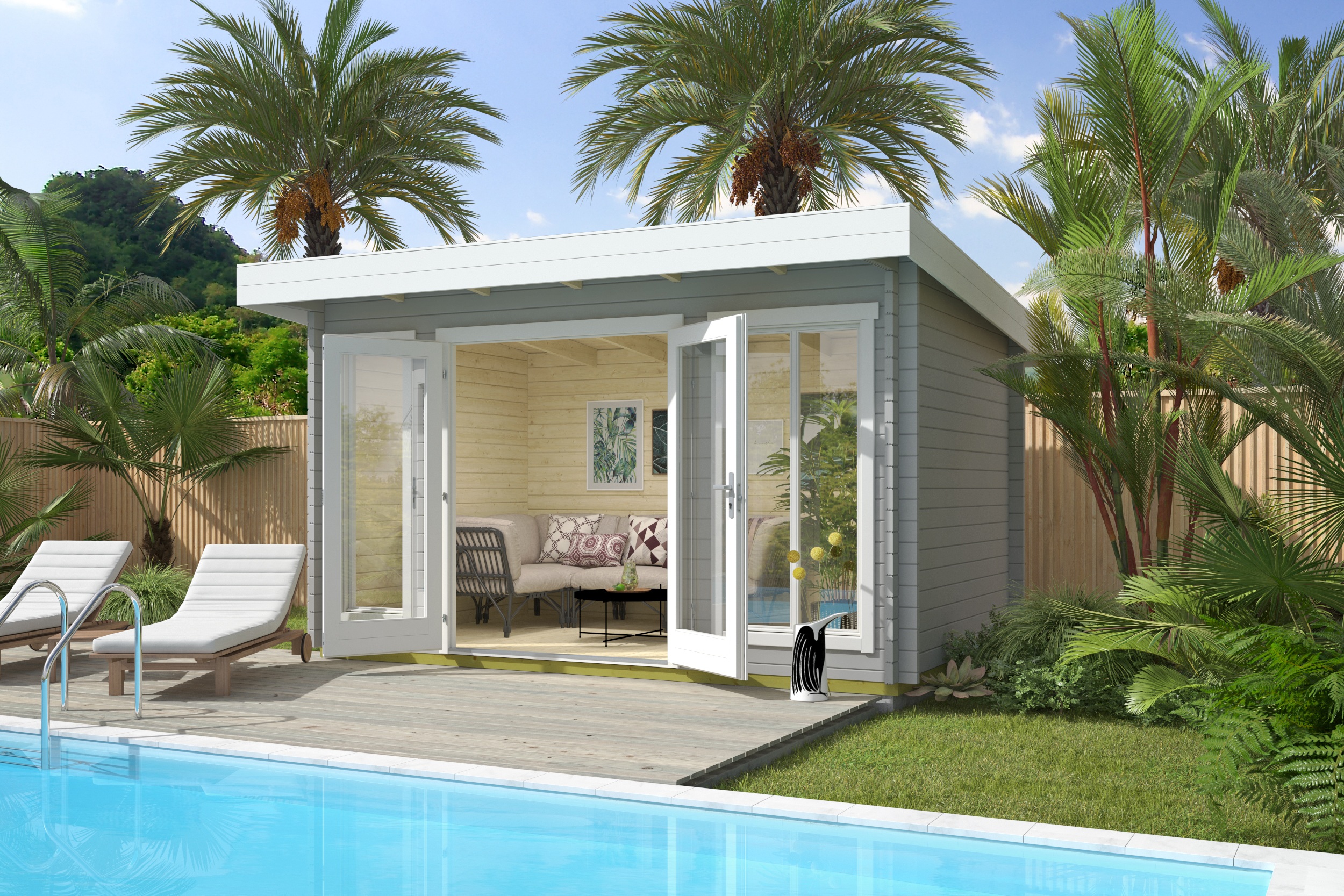

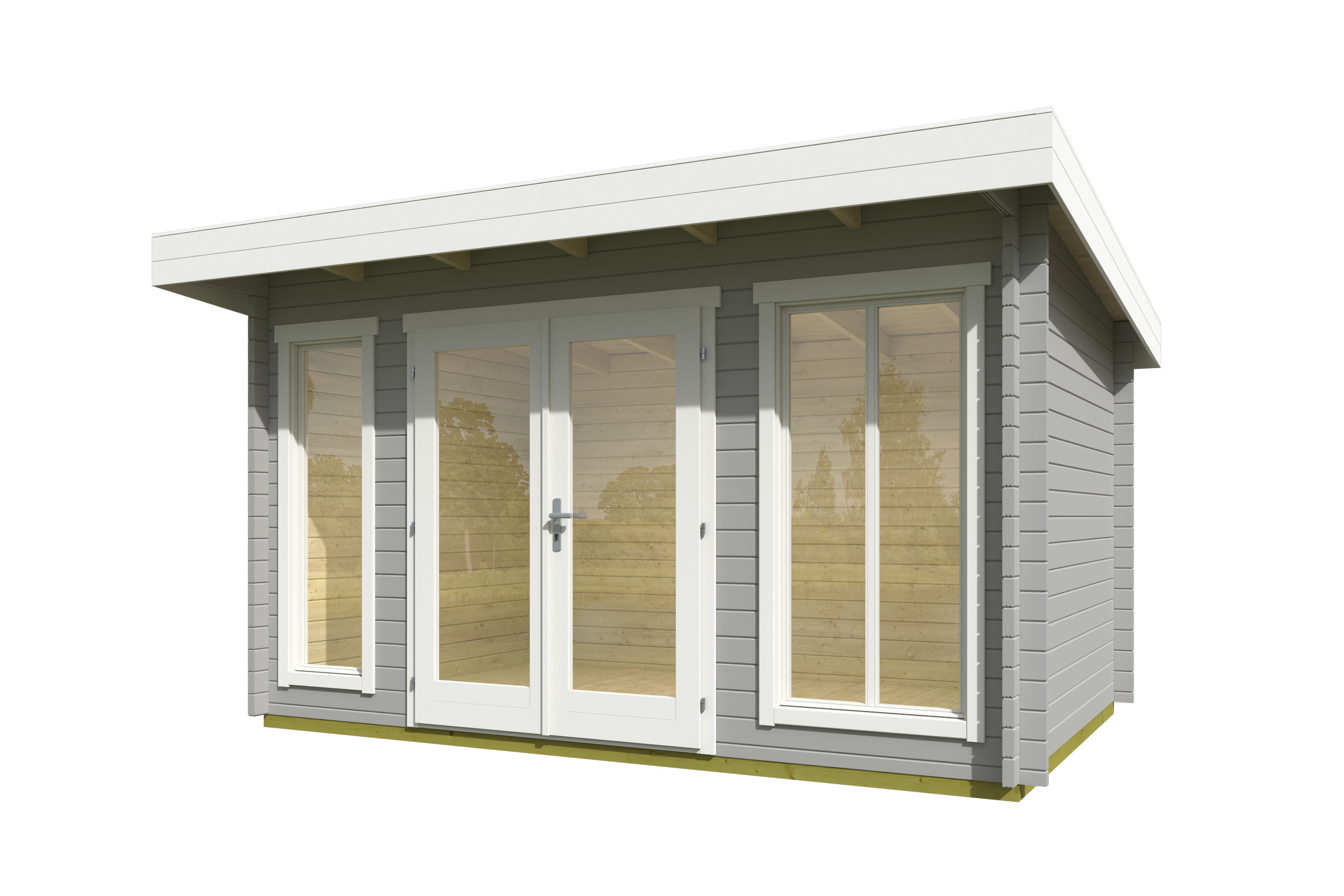

The Oasis – 10 m²
The Oasis Skillion Roof Cabin is a 2.5 x 4 metre beach style Cabin which is the perfect size for a garden cottage, home office or a spare bedroom. This cabin can have a stylish verandah attached and comes in 44mm thick timber.
Some of our clients use this cabin kit as a spare room, teenagers retreat, camping hut, mining camp hut, garden shed, losmen, massage room or sauna.
This cabin comes as a kit only. Kitchen, bathroom, electrical, plumbing and other items are not included in the kit price.
NSW council regulations now allow cabins up to and including 20m2 in your back yard without council approval. Conditions apply. Click here to see legislation
Enquire about this cabin. For more info send us an email.

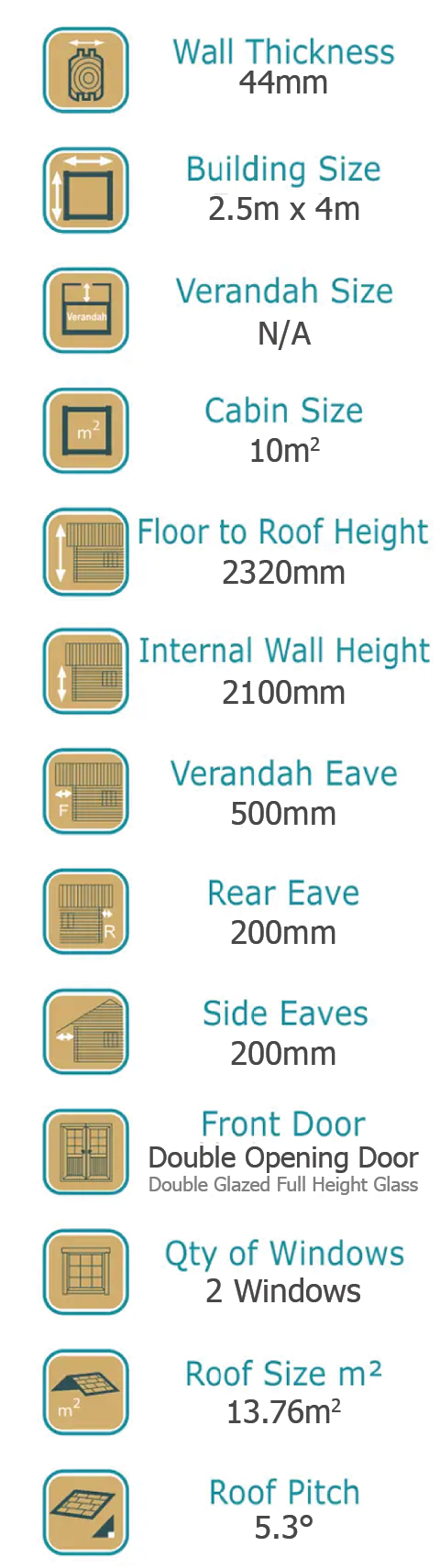

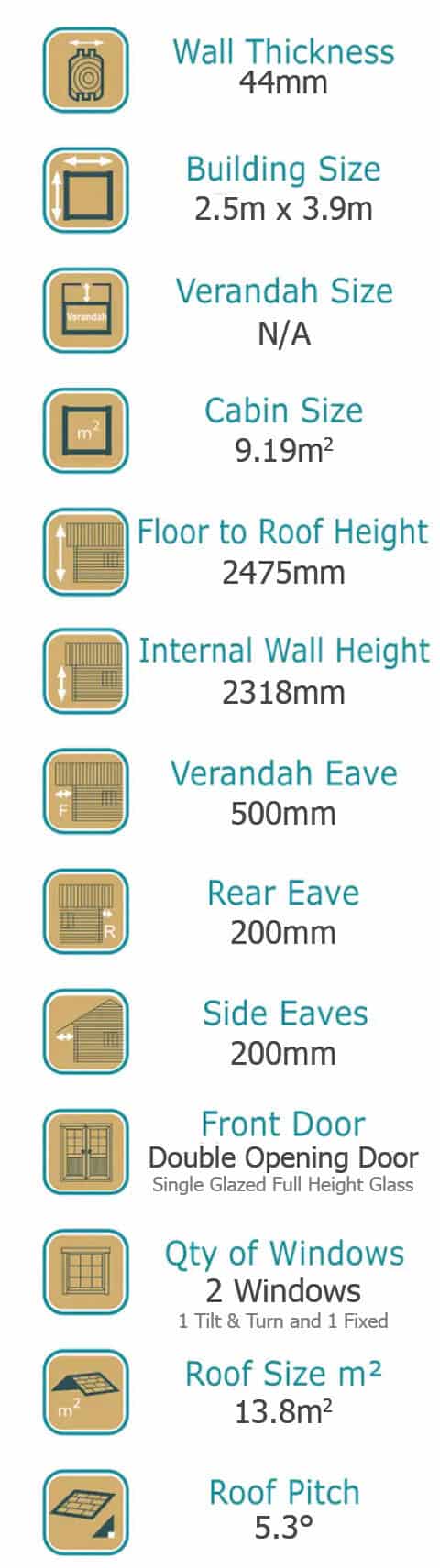

Cabin Specs
Detailed List of Cabin Specs
Complete Cabin Kit

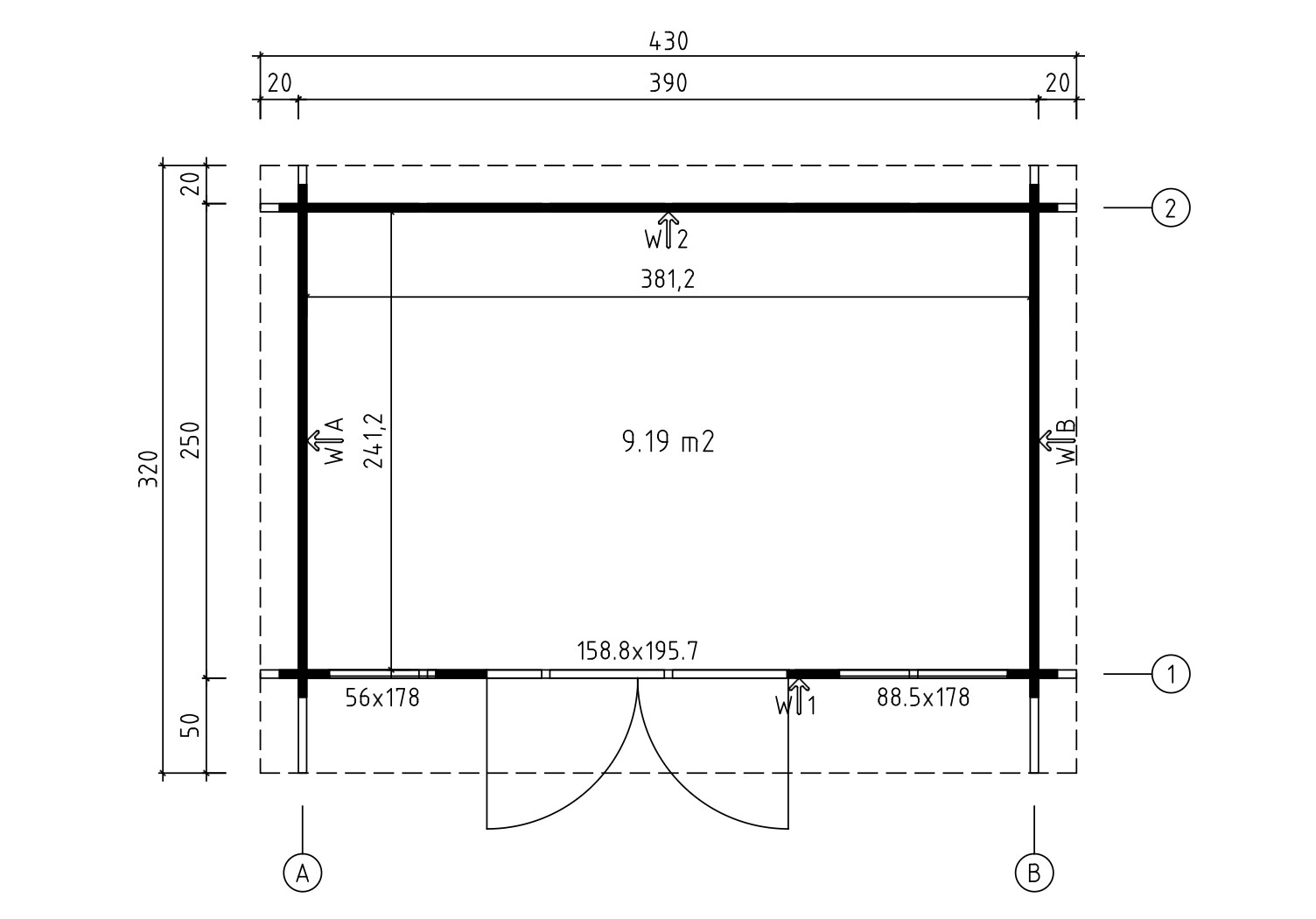

Overall Floor Space 2.5m x 4m = 9.44m² in total.
Bathroom Space
N/A with this cabin
Floor Bearers
140mm x 45mm H3 treated, resistant to moisture and termites.
Walls
Cut to size, 44mm T&G (Tongue & Groove) Timber. Ready to Assemble, then Seal and Paint.
Flooring
18mm Tongue & Groove (T&G) Solid Timber Flooring.
Roof Beams
150mm x 44mm, Full Span for N3 wind rating.
Roof
19mm Tongue & Groove (T&G) timber. Colorbond roofing in your choice of colour is INCLUDED in the cabin kit price. Guttering is an optional extra if required.
Timber Posts
Used in the sub-floor construction. 125mm round treated pine H4 posts at 800mm in length per post.
Windows
The Oasis Cabin comes with 2 Single Glazed Timber Windows
Front Door
“Single Glazed” full Glass French Double Door with handles and locks is included in the Oasis Cabin kit.
Verandah
External flat decking can be added at an additional cost
Building Plans
Easy to Follow Building Plans are included with the cabin kit. We also have a range of instructional videos to help DIY’ers build the cabin step by step.
Sub Floor Base Kits
| Our standard base kit is included in the price, But Note: Base kits can vary in price due to site specifications. Cabin heights off the ground can add additional post length. If soil tests are required, some hole diameters and depths may vary and some site specific engineering may be required depending on your cabin usage. We will advise if any variation in price is required, but it is not common that we need to add some to the cabin kit price. |
Additional Windows and Doors
Additional Windows and Doors can be added into one of our standard designs. We would advise the price once we have discussed the options available. Adding or removing items from a standard kit may result in a significantly longer delivery time, as the additions or deletions need to be catered for at the factory as a one off build.
DIY - Handy Info
If you have had reasonable experience in DIY projects, then our cabin kits are very straight forward and easy to assemble. If your kit does require council approval then you can DIY as a licensed ‘Owner Builder’ or enlist the help of a licenced, local Carpenter or Builder.
Sometimes it is a better use of your valuable time and more cost effective to have our installation team come and install it for you. Prices for installation are located on this page. This cabin takes about 1 week onsite for our installers to complete the cabin build to lock-up stage.
Delivery
Cabin Kit delivery cost depends on several factors. Geographic location, type of cabin kit, access for the crane truck. Once we have a few details we can confirm the quote for delivery.
Delivery
Anywhere in Australia Possible- Delivery price depends on a few factors. Your geographical location, crane truck access on your site and the exact content of your cabin kit.
Steel Posts
Upgrade from H4 Timber Posts- 800mm 75mm x 75mm galvanised steel posts
- Longer post calculated at $30 / Linear metre
Installation
Our Installers build it to lock-up stage- Cabin is installed to lock-up stage
- price does not include electrical, plumbing, painting, or any kitchen or bathroom fixtures or fittings.
